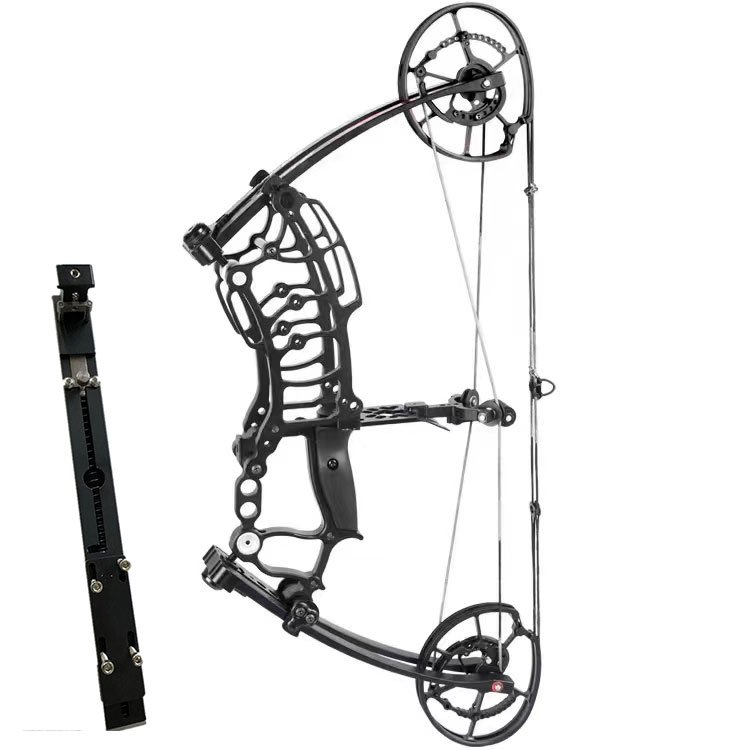

Installation Manual for JWM-109K-2 Dual-purpose Continuous Shooting Steel Ball Compound Bow
Installation:

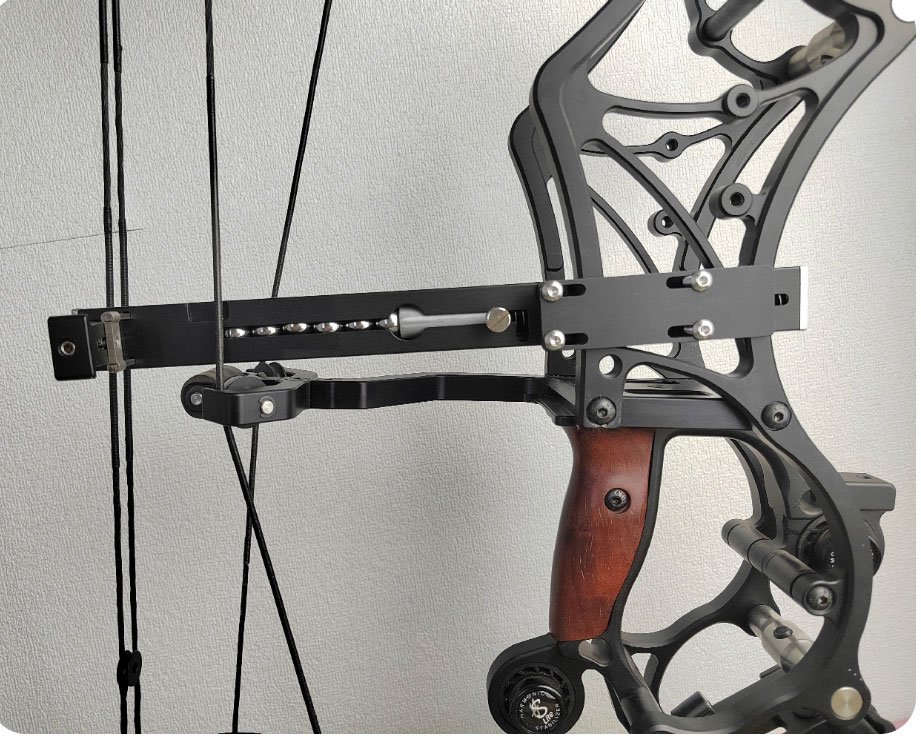

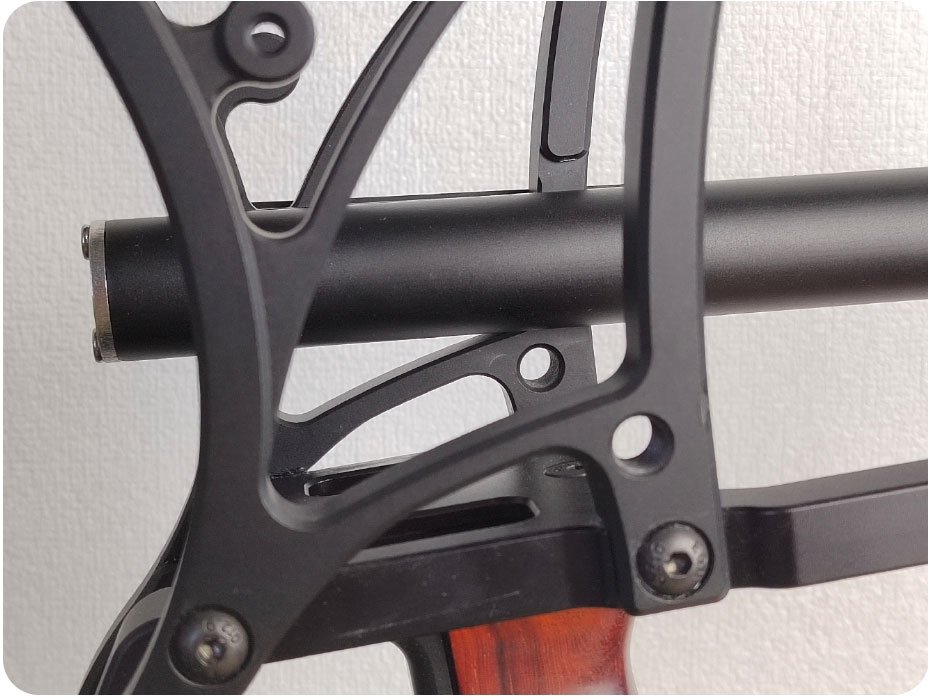

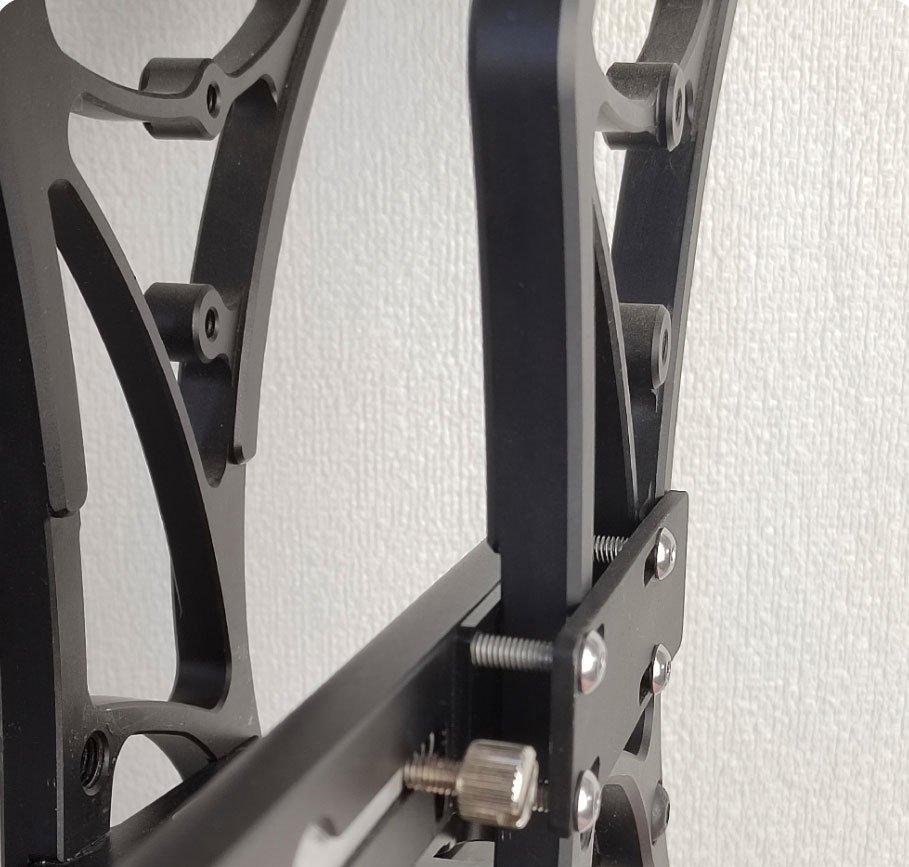

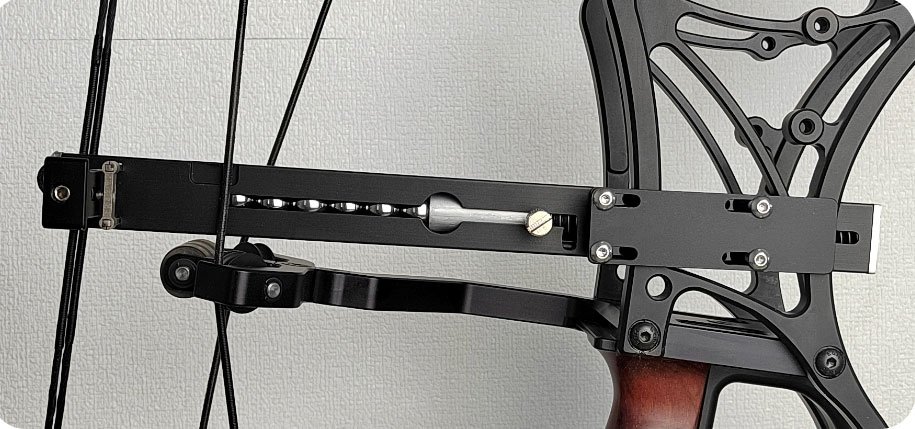

1, As shown in the diagram, place one side of the front flat surface of the magazine tightly against the appropriate position on the inner side of the bow JWM-109K-2. Press the fixing plate onto the corresponding position on the outer side of the bow. Insert the four screws through the fixing plate into the corresponding screw holes on the magazine. While ensuring the steel ball-loading drawer is properly positioned and allows for smooth loading, tighten the four screws securely. During installation, raise the end of the magazine farthest from the steel ball seat by approximately 2 cm to clear the ballistic trajectory.
2, Loading the steel balls to magazine of JWM-109K-2 Dual-purpose Steel Ball Compound Bow :
Push the plunger fully forward, then rotate it downward to lock it in place. Take 9-10pcs steel balls (with a diameter between 12 and 13 mm) and load them one by one into the steel ball loader. Finally, release the plunger.
3, Loading the steel balls to launching device of JWM-109K-2 Dual-purpose Steel Ball Compound Bow:

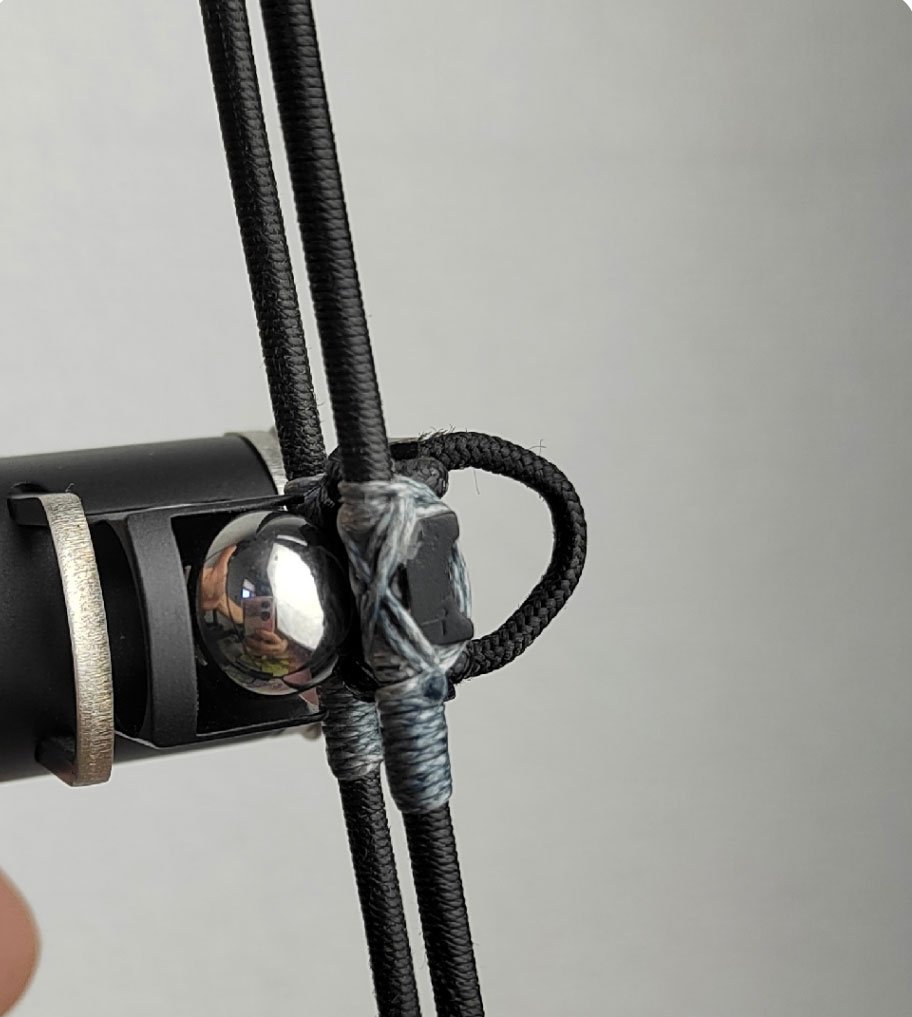

Quickly press the steel ball-loading drawer, and the steel ball will be instantly secured onto the steel ball seat. Upon release, the drawer will spring back to its original position.

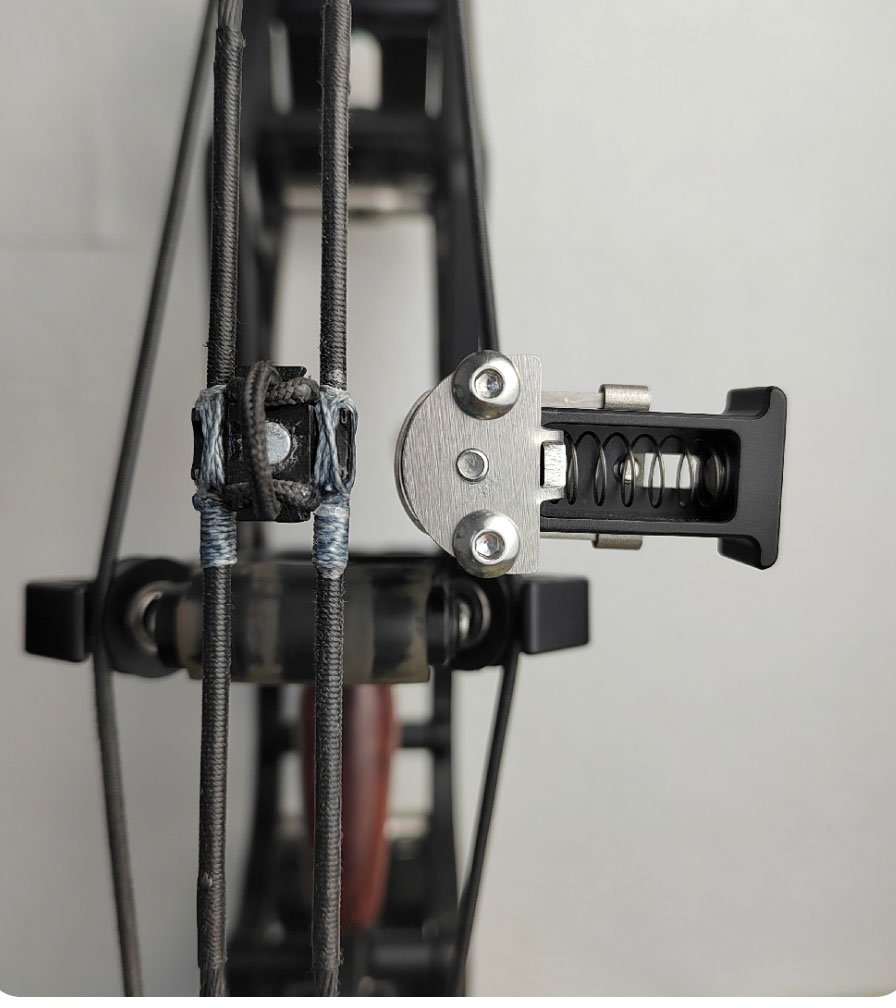

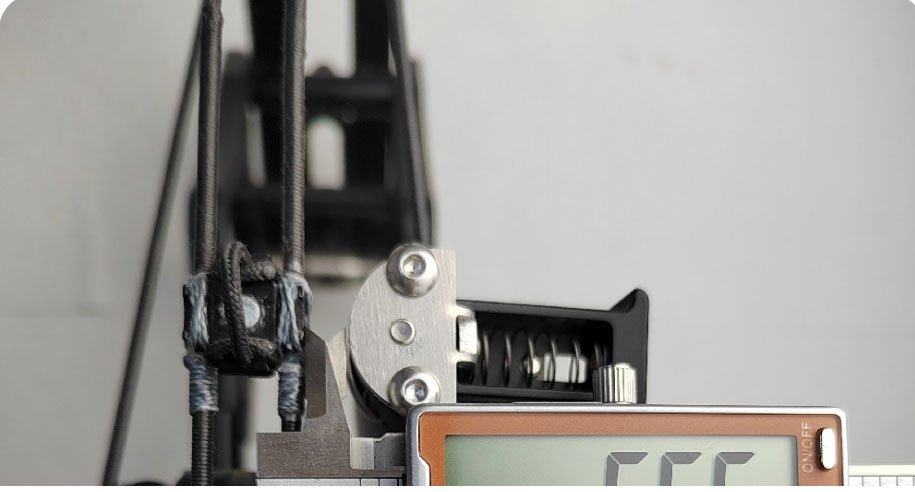

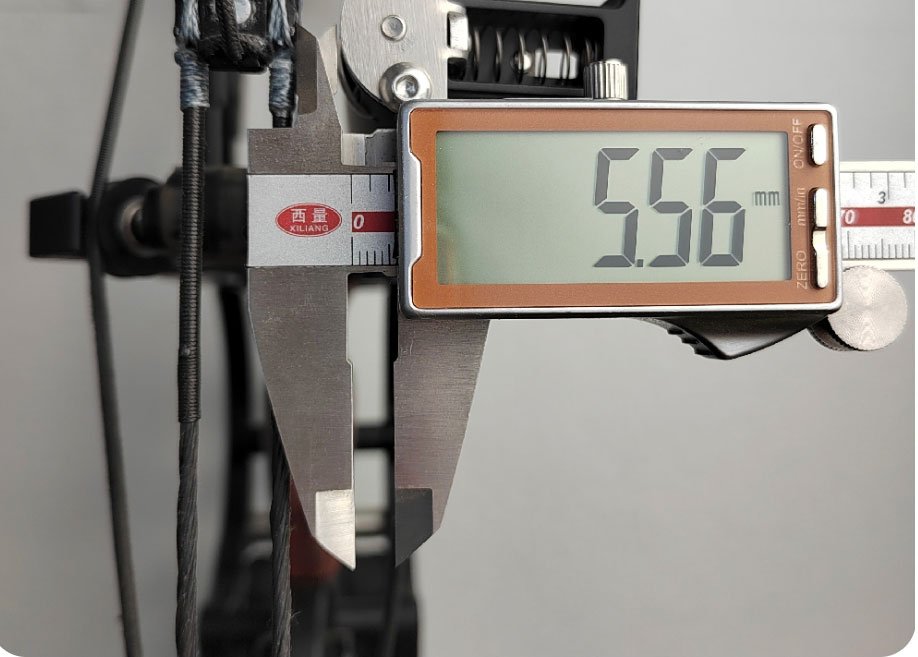

4, After installing the magazine of JWM-109K-2 Dual-purpose Steel Ball Compound Bow, ensure there is a gap of at least 5 mm between the steel ball seat and the magazine. Also, make sure there is a clearance of more than 1 mm between the secondary string and the magazine to avoid wear.
5, After loading the steel ball using the magazine, carefully observe and ensure the steel ball-loading drawer has returned to its original position. Do not fire until you have confirmed that it is not obstructing the path of the bowstring and the steel ball seat.
6, Please be sure to abide by the law, use it in open outdoor areas and take other safety precautions.
